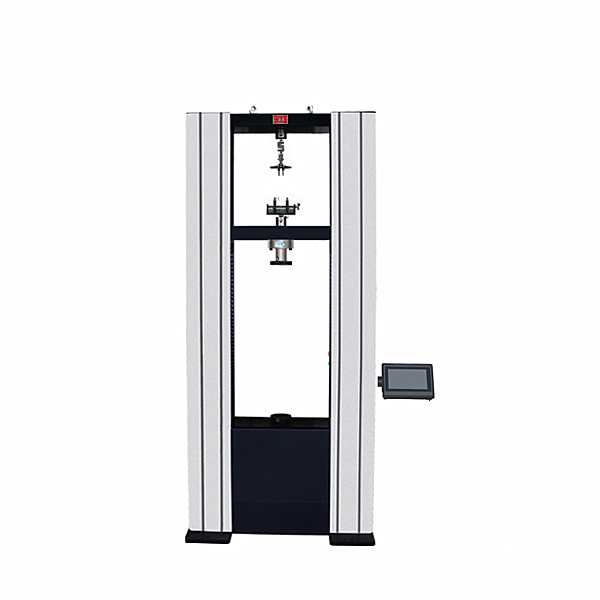

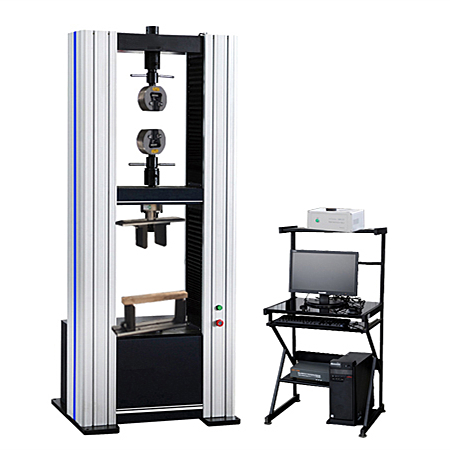

1～600kN Bending Testing Machine
Maximum Test Force: 1～600kN
- Description

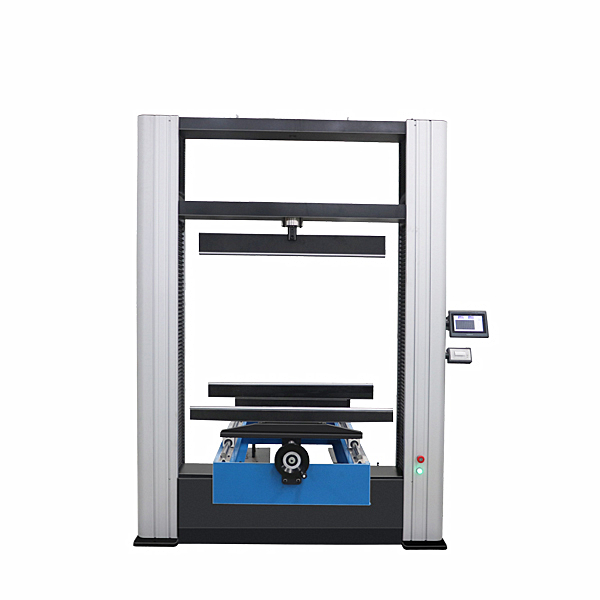

The four-point bending testing machine is suitable for fine ceramic materials, plastics, metal sheets, display functional glass panels, LCD panels, capacitive screen covers, sapphire glass, glass lenses, tempered glass, mobile phone covers and other optoelectronic industries. It can test physical properties such as three-point bending resistance, four-point bending resistance, and static pressure testing of various ceramic materials, tempered glass materials, finished products, and semi-finished products. Various fixtures can be purchased for tensile, compressive, and tensile testing. Tests such as pressure holding, bending resistance, tearing, peeling, adhesion, shear, etc.
Our Products
FAQ
1.What about the production time?
The production time varies for different products. If the product is in stock, the delivery time is within 5 days. For standard products that are not in stock, the production time is 15 days. The more customization a product requires, the longer the production time, with a maximum of 3 months.
2.Can you provide the related documents?
Of course. Regarding certificates, we can provide ISO, CE, and other certificates as needed, or any other documents you require, and we can provide them promptly. As for the product manuals, you can download them from the corresponding section on our website, or you can leave us a message or contact us through WhatsApp, Facebook, LinkedIn, etc.
3.Can you guarantee safe and secure shipping of products?
Our products always use safe and high quality export packing. We use high-quality wood packaging, and we also have long-term partnerships with freight shipping companies. Of course, you are welcome to specify your preferred shipping company.
Let’s Start Work
Together
Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.
Features
1. Adopt fully digital AC servo speed control system and servo motor as the drive system, with high speed control accuracy and stable performance.
2. Microcomputer control and data processing software automatically collects and processes test data, draws various curves and prints test reports;
3. Good humanized design makes the test operation easier, and the test operations can be automatically completed on the computer through the mouse.
4. This machine fully meets the requirements of national standards and can conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users.
5. It has good scalability and can cope with various tests of different samples by changing the fixture.
6. It has three control modes: stress, strain and displacement. The control modes can be switched randomly.
7. It has functions such as mechanical limit protection, overload protection, overcurrent protection, and leakage protection.
- Tension
- Compression
- Bending
- Shear
- Metals
- Non-metals
- Composite materials
- ASTM D638
- ASTM D1708
- ASTM D412
- ASTM D1876
- ASTM D695
- ASTM D751
- ASTM D882
- ASTM D3330
- ASTM F88
- ISO 37
- ISO 527
- ISO 13934
Specifications
| Model | WDD-50E | WDW-100E | WDW-150E | WDW-200E | WDW-300E | WDW-600E | Customized on Demand |
|---|---|---|---|---|---|---|---|
| Maximum test force | 50 kN | 100 kN | 150 kN | 200 kN | 300 kN | 600 kN | 20 kN - 600 kN |
| Force measurement range | 0.4%～100%FS without binning throughout the process | ||||||
| Test force indication accuracy | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||||||
| Deformation accuracy | Better than ±1% of the indication value | ||||||
| Crossbeam displacement measurement (mm) | Resolution 0.001 | ||||||
| Deformation range | 2% - 100% | ||||||
| Large deformation measurement range | 10 - 800 (optional) | ||||||
| Large deformation indication accuracy | Within ±1% of the indication value | ||||||
| Displacement resolution (n) | Resolution 0.001 | ||||||
| Displacement rate adjustment range | (0.001 - 500) mm/min can be set arbitrarily. Higher speed customizable | 0.001～250 mm/min | |||||
| Displacement rate spatial accuracy | ≤ ±1% | ||||||
| Stretch stroke (mm) | 800 | 800 | 650 | 600 | 600 | 600 | Custom made |
| Test space (mm) | 1200 | 1200 | 1300 | 1400 | 1400 | 1450 | Custom made |
| Host size (mm) | 855×400×1980 | 905×500×2000 | 955×500×2190 | 1104×600×2430 | 1104×600×2430 | 1365×870×2500 | Custom made |
| Testing machine weight (kg) | About 450 | About 600 | About 800 | About 1250 | About 1250 | About 2500 | — |
| Motor power (kW) | 1 | 1.5 | 2 | 2.5 | 2.5 | 4.5 | — |
| Testing machine auxiliary tools | Stretching aids, compression aids, bending aids and other aids (optional) can be customized | ||||||
| Testing machine style | Floor-standing door type / Floor-standing table type | ||||||
