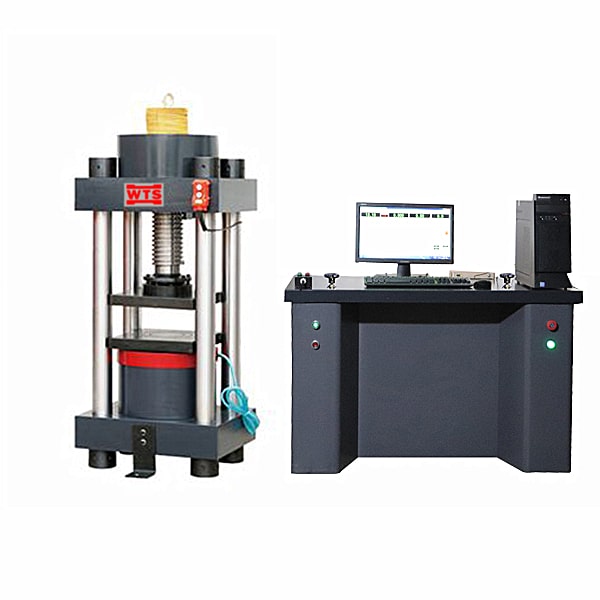

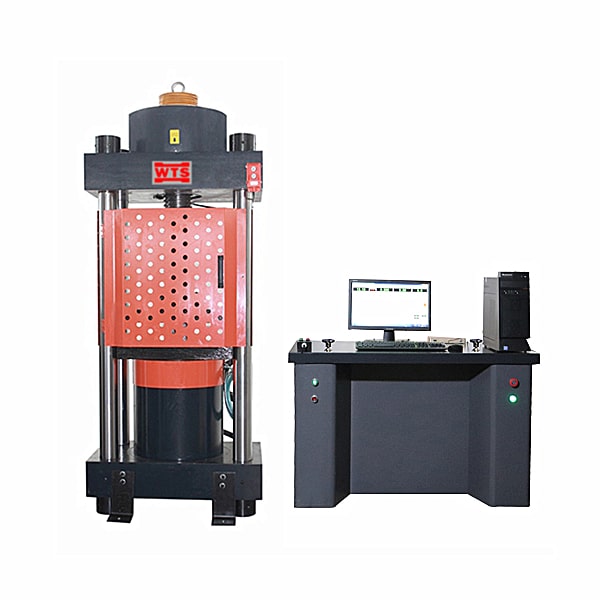

2000KN Compression Testing Machine
This series of testing machines are mainly used for compressive strength tests of cement products, concrete, rocks and metals. Equipped with appropriate fixtures and measuring devices, they can meet the splitting tensile test, flexural test and static pressure elastic modulus test of concrete. Applicable standards: GB/T, ISO, ASTM, DIN, JIS and other related standards. This equipment meets the latest industry standards “JC/T960-2022”, “GB/T17671-2021”, “GB/T50107-2019”, etc.
- Tension
- Compression
- Bending
- Shear
- Metals
- Non-metals
- Composite materials
- ASTM D638
- ASTM D1708
- ASTM D412
- ASTM D1876
- ASTM D695
- ASTM D751
- ASTM D882
- ASTM D3330
- ASTM F88
- ISO 37
- ISO 527
- ISO 13934
Specifications
| Model | YAW-600 | YAW-1000 | YAW-2000 | YAW-3000 | YAW-5000 | YAW-10000 | YAW-20000 | Customized |
|---|---|---|---|---|---|---|---|---|
| Maximum test force | 600kN | 1000kN | 2000kN | 3000kN | 5000kN | 10000kN | 20000kN | 300–50000kN |
| Force measurement range | 2%~100%FS without binning throughout the process | |||||||
| Test force indication accuracy | Better than ±1% of the indication value (up to ±0.5%) | |||||||
| Measurement resolution | 1/500000 of the maximum test force | |||||||
| Host structure form | two columns | four columns | ||||||
| Relative error of worktable speed | Better than ±1% of the indicated value | |||||||
| Pressure plate size | ø160 | ø600 | 600×600 | 1050×1050 | 1500×1500 | — | custom made | |
| Concrete (rock) elastic modulus | Not configurable | Scalable configuration | ||||||
| Rock shearing (45°) device | Not configurable | Scalable configuration | ||||||
| Upper/lower platen adjustment | Oil cylinder, pressure block, worm gear | |||||||
| Distance between pressure plates (mm) | 300 | 400 | 800 | — | customizable | |||
| Piston stroke (mm) | 140 | 200 | Up to 800 | — | customizable | |||
| Piston displacement speed (mm/min) | 0–100 | 0–80 | 0–50 | — | ||||
| Test force loading rate | 0.02%～2%FS/s | |||||||
| Power supply (3-phase) | 380V 50Hz | |||||||
| Total power (kW) | 4 | 6 | 8 | 12 | 18 | 36 | — | — |
| Host overall dimensions (mm) | 1000×500×1650 | 720×1300×2300 | 1250×2000×3600 | 2300×1400×3900 | 5600×1750×3900 | 7000×2150×5600 | — | Customized on demand |
| Fixture type | W type / Y type | |||||||
Features
This series of testing machines is a hydraulic servo compression pressure testing machine with closed-loop control, with constant stress control and load holding functions; the force measuring system uses a load sensor, and the test force is not divided into grades throughout the process and has one resolution, which can fully ensure the test accuracy. Accurate and reliable; multiple displacement (or deformation) measurement channels can be expanded according to customer requirements.
