5～600kN Shear Compression Shear Testing
Maximum Test Force: 5～600kN
- Description
The shear testing machine (hydraulic type) mainly tests the shear strength of metal materials/non-metallic materials/brake pads/finished parts, etc. It consists of two systems: a computer or digital display and a test host machine. The computer or digital display serves as The control system can automatically control the entire test process and automatically collect experimental data through data sensors.
1.What about the production time?
The production time varies for different products. If the product is in stock, the delivery time is within 5 days. For standard products that are not in stock, the production time is 15 days. The more customization a product requires, the longer the production time, with a maximum of 3 months.
2.Can you provide the related documents?
Of course. Regarding certificates, we can provide ISO, CE, and other certificates as needed, or any other documents you require, and we can provide them promptly. As for the product manuals, you can download them from the corresponding section on our website, or you can leave us a message or contact us through WhatsApp, Facebook, LinkedIn, etc.
3.Can you guarantee safe and secure shipping of products?
Our products always use safe and high quality export packing. We use high-quality wood packaging, and we also have long-term partnerships with freight shipping companies. Of course, you are welcome to specify your preferred shipping company.
Let’s Start Work
Together
Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.
Features

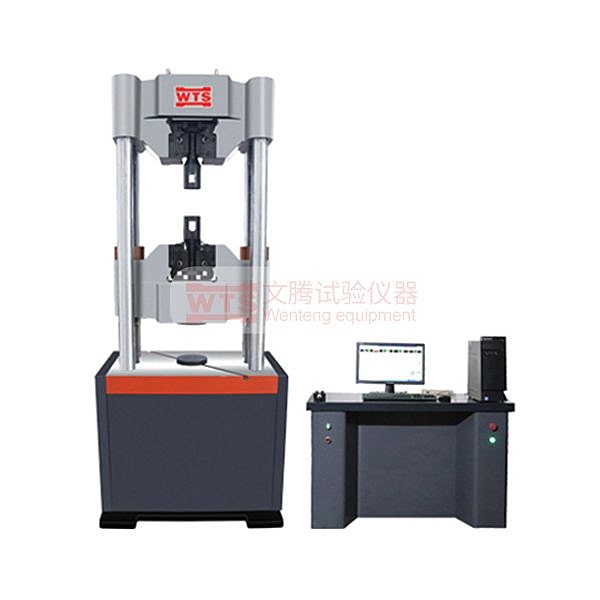

1. The hydraulic universal testing machine is mainly used for testing metal materials such as smooth round steel bars, ribbed steel bars, straight steel bars, coiled steel bars, metal plates, metal bars, cables and ropes, castings and forgings, bolt fasteners, metal pipes, etc. , and non-metallic materials can be tested and researched on tensile tests, compression tests, bending tests, shear tests, etc., and other mechanical properties at room temperature.
2. The testing machine is equipped with a computer, printer, electronic extensometer, photoelectric encoder and general testing software, which can accurately measure the tensile strength, tensile strength, yield strength, specified non-proportional elongation strength, elongation and elastic modulus of metal materials. Quantitative equality.
3. Experimental results can be queried and printed (force-displacement, force-deformation, stress-time, stress-strain, force-time, deformation-time, force-displacement, displacement-time) eight kinds of curves and related experimental data, with The software self-test function can self-diagnose faults. Please refer to the software description for details.
It is an ideal testing design for industrial and mining enterprises, scientific research units, colleges and universities, engineering quality supervision stations and other departments.
- Tension
- Compression
- Bending
- Shear
- Metals
- Non-metals
- Composite materials
- ASTM D638
- ASTM D1708
- ASTM D412
- ASTM D1876
- ASTM D695
- ASTM D751
- ASTM D882
- ASTM D3330
- ASTM F88
- ISO 37
- ISO 527
- ISO 13934
Specifications
| Model | MGW-5000 | MGW-6500 | MGW-10000 |
|---|---|---|---|
| Maximum test force | 5000 kN | 6500 kN | 10000 kN |
| Force measurement range | 2% – 100% FS (full scale) | ||
| Relative error of test force indication | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||
| Displacement measurement range (mm) | 0 – 200 mm | ||
| Displacement indication relative error | ±1% | ||
| Force rate control adjustment range | 1 MPa – 52 MPa | ||
| Force rate control relative error | ±1% | ||
| Displacement rate control relative error | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||
| Force and displacement maintain control range | 0.3% – 100% FS | ||
| Force and displacement maintain control relative error | ±1% | ||
| Repeatability | ±0.5% | ||
| Relative resolution | ±0.5% | ||
| Piston stroke (mm) | 200 mm | ||
| Stretch spacing (mm) | 3200 mm | 3400 mm | ≥3400 mm |
| Overall dimensions (mm) | 3200 × 780 × 650 | 3400 × 800 × 680 | 4500 × 950 × 1200 |
| Weight (kg) | 3000 kg | 4000 kg | 6000 kg |
| Testing machine host form | Horizontal | ||
