Customized High & Low-Temperature Universal Testing Machine
The high and low temperature testing machine is mainly suitable for rubber, plastic profiles, plastic pipes, plates, sheets, films, wires and cables, waterproof membranes, metal wires, metal rods, metal plates and other material products. It can be used at high, low and ultra-high temperatures. Comprehensive mechanical testing under medium conditions such as vacuum and inert atmosphere. It can also perform tensile, compressive, bending and other strength tests on metal materials at room temperature. Adding a material testing fixture can perform corresponding strength tests on materials or finished products.
- Tension
- Compression
- Bending
- Shear
- Metals
- Non-metals
- Composite materials
- ASTM D638
- ASTM D1708
- ASTM D412
- ASTM D1876
- ASTM D695
- ASTM D751
- ASTM D882
- ASTM D3330
- ASTM F88
- ISO 37
- ISO 527
- ISO 13934
Specifications
| Model | WDW-1～20H | WDW-50H | WDW-100H | WDW-200/300H | Customized on demand |
|---|---|---|---|---|---|
| Maximum test force | 20kN | 50kN | 100kN | 300kN | 10N～600kN |
| Force measurement range | 0.4%～100%FS without binning throughout the process | ||||
| Test force indication accuracy | Better than ±1% of the indication value (precision level can reach ±0.5%) | ||||
| Test force classification | Stepless speed regulation, four gears: ×1, ×2, ×5, /10 | ||||
| Control stability | ±2.5%RH, ±1℃ | ||||
| Temperature range | (-196～+1500℃) (can be customized according to user requirements) | ||||
| Temperature fluctuation | ±1℃ | ||||
| High and low temperature chamber test dimensions | 200mm×300mm×400mm (can be customized) | ||||
| In-box studio dimensions | 270×270×600 mm (can be customized according to user requirements) | ||||
| Displacement rate adjustment range | (0.001-500) mm/min can be set arbitrarily. Higher speed can be customized. | ||||
| Displacement rate spatial accuracy | ≤±1% | ||||
| Test stroke (mm) | 400, 500, 600 (can be increased according to customer requirements) | ||||
| Test width (mm) | 400 (can be increased according to customer requirements) | ||||
| Completeness | Meet the standards | ||||
| Testing machine weight (kg) | about 150 | about 450 | about 600 | about 1250 | - |
| Machine size (L×W×H mm) | 640×330×155 | 855×400×1980 | 905×500×2000 | 1104×600×2430 | - |
| Protective function | Overload, limit, overcurrent, overvoltage, overheating, overtemperature protection | ||||
| Power supply | 220V/380V 50～60Hz | ||||
| Fixture type | W type / Y type | ||||
Features

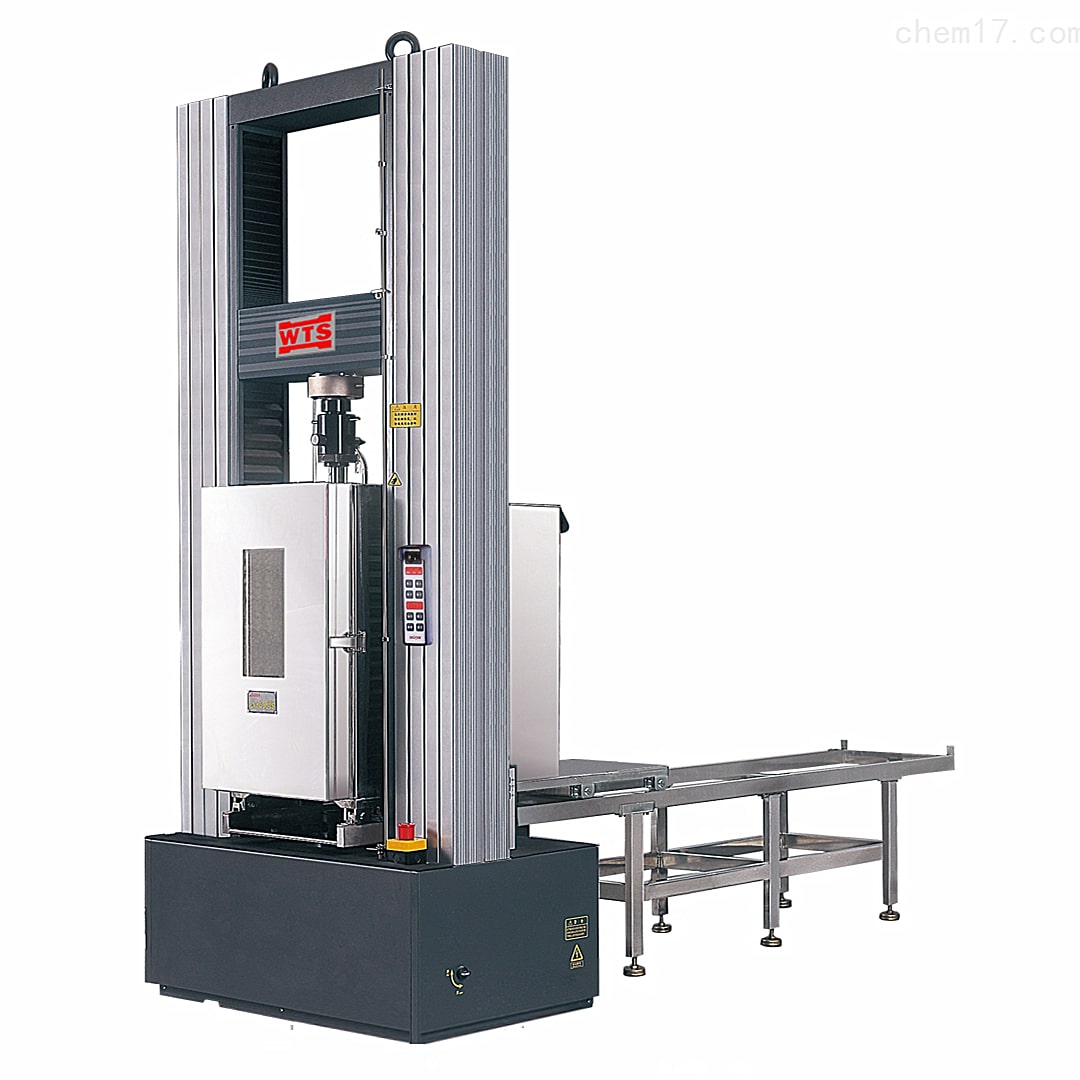

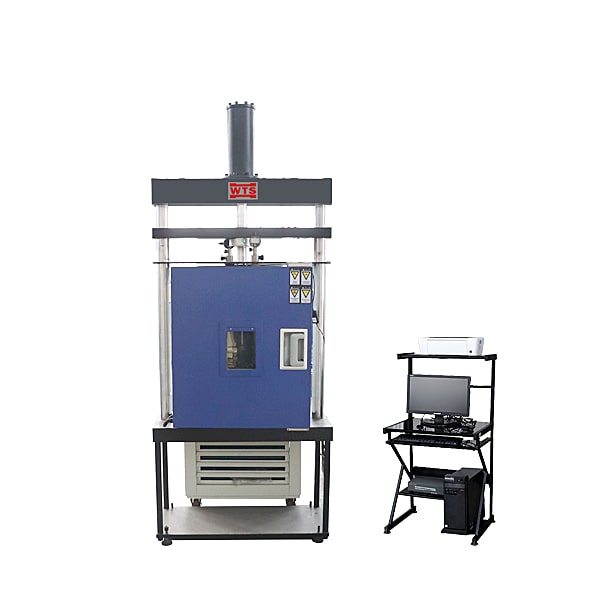

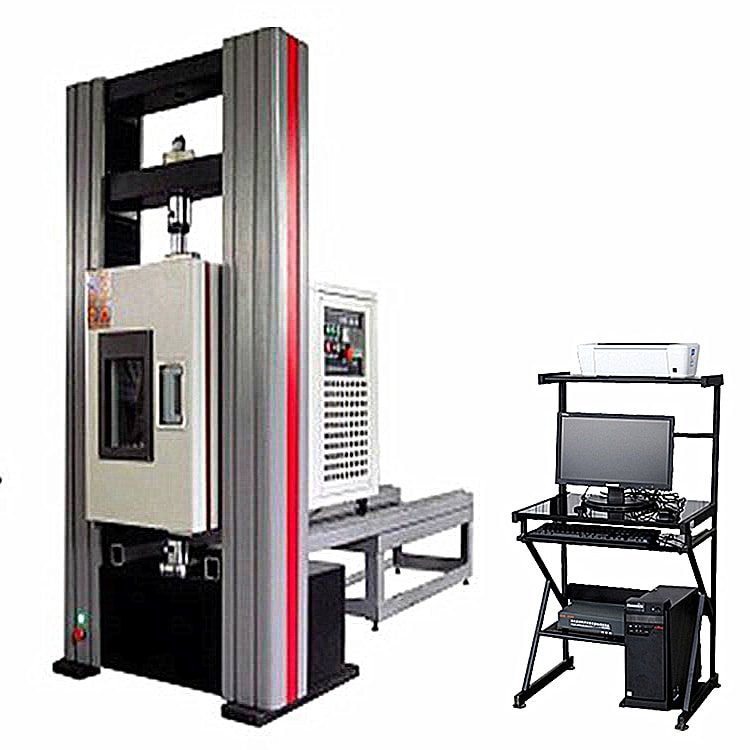

The high and low temperature testing machine consists of a main body, a fixture and a movable high and low temperature test chamber.
The main body of the tensile machine adopts a complete set of imported digital AC servo systems and a high-rigidity frame structure.
The high and low temperature test chamber uses double-layer insulated glass doors to facilitate users to observe the test conditions, and uses an all-stainless steel frame and liner, which is not only beautiful but also highly corrosion-resistant.
The overall shape is novel, high precision, low noise and easy to operate.
